BOCHEN｜Manufacturer of Potentiometers and Electronic Components For 25 Years.
3 Years
| Ask Lasest Price | |
| Brand Name : | BOCHEN |
| Model Number : | WX118 |
| Certification : | RoHS, Reach |
| Price : | $0.87 - $2.00/Piece |
| Payment Terms : | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability : | 3,000,000 Pieces Per Month |
| Delivery Time : | 1-7 Workdays |

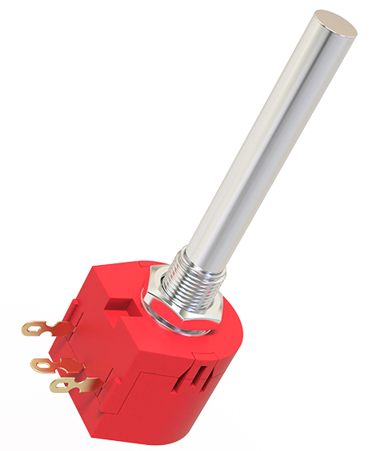

TW1502ka Wirewound Potentiometer Single Turn Long Metal Shaft Rotary Resistor
The WX118 Wirewound Potentiometer is a high-performance electronic component designed for precision resistance control in industrial, automotive, and electronic applications. Engineered
with a wirewound resistive element, it provides exceptional accuracy, stability, and durability, ensuring long-term reliability even in demanding environments.
✔ Superior Precision – Wirewound design ensures high accuracy and stable resistance adjustments
✔ Robust Stability – Reliable performance over long operational cycles and varied environmental conditions
✔ Long-Lasting Durability – Built to withstand mechanical wear and tear
✔ Smooth & Linear Adjustments – Enables precise control over resistance values
✔ Wide Resistance Range – Available in multiple resistance values, catering to diverse application needs
✔ Low Noise Performance – Reduces electrical interference, providing a clean signal output
✔ Compact & Efficient Design – Ideal for space-constrained applications
With its high power handling capability and superior control, the WX118 Wirewound Potentiometer is an industry-preferred solution for engineers seeking reliable and accurate components.
| Electrical Characteristics | Standard Resistance Range | 50Ω~10KΩ |
| Resistance Tolerance | ±10% | |
| Linearity | 0.25% | |
| Adjustment Angle | mech.258°±5°, elektr.270°±5° | |
| Terminal Resistance | 2ΩMax | |
| Maximum Contact Current | 100mA | |
| Resistance Law | A | |
| Insulation Resistance | More than 1000MΩ at DC500V | |
| Withstanding Voltage | AC1000V | |
| Environment Characteristics | Welding | T≤260℃,t≤3s |
| Power Rating(300 volts max.) | 1W(70℃), 0W(125℃) | |
| Temperature Coefficient | ±100ppm/℃ | |
| Rotational Life | 5,000 cycles without discontinuity | |
| Physical Characteristics | Total Rotation Angle | 300°±5° |
| Starting Torque | 35Ncm. | |
| Shaft Torque | 3.5~100 mN.m | |
| Stop Strength | 100Ncm. |
Packaging specification: 20 pieces/box,100 pieces/carton.
The WX118 Wirewound Potentiometer delivers industry-leading precision and reliability, making it an essential component for applications requiring fine-tuned resistance control and high durability.
• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality
assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
|
|
