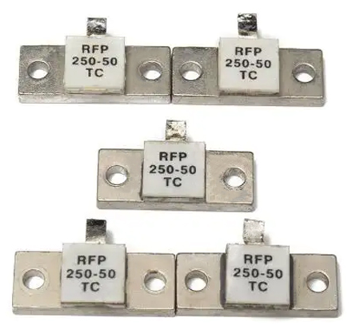

    Rig High Power Flange Mount Terminations 800w 100ohm 50ohm Rf Resistor

    Ask Lasest Price
    Brand Name : BOCHEN
    Model Number : RIG22
    Certification : RoHS, REACH
    Price : $0.98 - $1.80/Piece
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 1,000,000 Pieces Per Month
    Delivery Time : 1-7 Workdays
    • Product Details
    • Company Profile

    Rig High Power Flange Mount Terminations 800w 100ohm 50ohm Rf Resistor

    Rig High Power Flange Mount Terminations 800w 100ohm 50ohm Rf Resistor​

    Description


    The RIG22 Series by BOCHEN is a high-performance, flameproof power resistor engineered for demanding power applications. Designed with a durable ceramic core and a flame-retardant coating, it ensures exceptional thermal conductivity, mechanical strength, and long-term electrical stability—even in high-load and high-temperature environments.

    Features

    • Power Rating: Up to 1000W

    • Resistance Range: 1Ω – 500Ω

    • Tolerance Options: ±1%, ±5%, ±10%

    • TCR: ±300ppm/°C

    • Operating Temp.: -55°C to +165°C

    • Structure: Flameproof ceramic core construction

    • Mounting Type: SMD/SMT compatible

    • Certifications: RoHS & REACH Compliant

    Specifications


    Electrical CharacteristicsNominal resistance range1 ~ 500Ω
    Resistance tolerance±5%
    Frequency range0 ~ 2GHz
    Standing wave ratio1.2 ~ 1.3
    Insulation resistance≥ 1GΩ
    Withstand voltage500V / 1 mm (Substrate thickness)
    Environmental CharacteristicsRated power1~1000W (at 70°C)
    Temperature range-55°C ~ +165°C
    TCR (Temperature Coefficient)±300 × 10⁻⁶ /°C
    Temperature shock (-55°C/+125°C, 3 times)ΔR ≤ ±5%R
    Moisture proof (GJB306A-96 Method 106)ΔR ≤ ±5%R
    Vibration (10–500Hz, 0.75mm, 6h)ΔR ≤ ±3%R, no mechanical damage
    Low temp. test (-55°C, 24h)ΔR ≤ ±5%R
    Load life (96h)ΔR ≤ ±5%R
    CollisionΔR ≤ ±3%R
    Physical CharacteristicsTerminal strengthNo loose and fall off
    Solderability (240°C, 3s)Tin layer covering area ≥ 95%

    Application

    The RIG22 is built to excel in high-precision, high-reliability applications:

    • Power Supplies: Load and surge dissipation

    • Motor Drives & Braking Circuits

    • Inverters & Converters: High-voltage, high-frequency stability

    • Medical Devices: Diagnostic & imaging electronics

    • Test & Measurement Instruments

    • Automotive Systems: BMS, ECUs, power control

    • Lighting Ballasts & Voltage Regulators

    • Industrial Automation & PLCs

    Why Choose BOCHEN RIG22?

    • Direct from Manufacturer — No middlemen, competitive pricing

    • Certifications Ready — RoHS, REACH, and ISO quality assurance

    • Fast Production — Scalable capacity and quick turnaround

    • Expert Support — Dedicated after-sales and technical assistance

    • OEM/ODM Services — Custom specifications available on request

    Consistent Performance. Industrial Reliability.

    Whether you’re developing power control systems, precision instruments, or high-reliability electronics, the RIG22 power resistor delivers the performance you need — with the durability you can trust.
