3590S 10K Multi-turn Wireround Potentiometer 100R 200R 500R 1K 2K 4.7K 5K 10K 20K 50K 100K OHM Potentiometers Precision
• Small size, 7/8” diameter.
• Wirewound element type.
• 10 turns wirewound, adjustable precision.
• Nominal resistance 2k ohms, tolerance 5%.
• High precision, independent linearity 0.25%.
• Effective electrical angle 3600°+10°, total mechanical angle 3600°+10°.
• Metal rotary shaft, slotted shaft type, rotary shaft lengths can be customised.

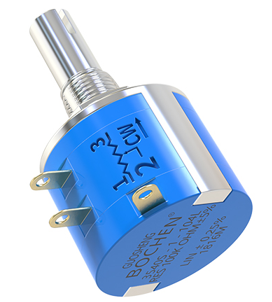

The 3540S-1-202L is a compact, high-precision wirewound potentiometer with a 7/8” diameter, is designed for control applications where accuracy and high-reliability are critical. It features a 10-turn wirewound element, providing adjustable precision and a nominal resistance of 2k ohms with a tolerance of 5%. The potentiometer is equipped with a durable metal rotary shaft, featuring a slotted design, and the shaft lengths can be customized to meet specific needs. With an independent linearity of 0.25%, it ensures high accuracy in control applications.
The device can handle a power rating of 2W at 70℃, making it suitable for various demanding environments. Its effective electrical angle is 3600°+10°, and the total mechanical angle is also 3600°+10°, offering extensive adjustment capabilities.The 3540S-1-202L multiturn precision potentiometer is ideal for measuring linear distance, angles or rotations in production equipment, industrial test and measurement equipment, and medical equipment.
| Electrical Characteristics | Standard Resistance Range | 100Ω-100KΩ |
| Resistance Tolerance | ±5% | |
| Independent Linearity | ±0.25% | |
| Effective Electrical Travel | ≥3600°-10° | |
| Terminal Resistance | ≤0.2%R or 5Ω | |
| Noise | ≤3%R or 3Ω | |
| Insulation Resistance | R≥1GΩ | |
| Withstand Voltage | 101.3kPa 710V, 8.5kPa 470V | |
| Environment Characteristics | Rated Power | 2W@+70℃, 0W@+125℃ |
| Operating Temperature Range | -55℃~+125℃ | |
| Temperature Coefficient | ±100ppm/℃ | |
| Temperature Variation | ΔR≤2%R, Δ(Uab/Uac)≤±1% | |
| Vibration | 390m/s2, 4000cycles, R≤±1%R | |
| Collision | 10-500Hz, 0.75mm, or 98m/s2 , 6hΔR≤土1%R.Δ(Uab/Uac)≤±2% | |
| Climate Category | ΔR≤±3%R, R1≥100MΩ | |
| Electrical Endurance At 70°C | 2W, 1000h, ΔR≤±3%R | |
| Rotational Life | 10000 cycles, ΔR≤±3%R | |
| Steady Damp Heat | ΔR≤±3%R, R1≥100MΩ | |
| Physical Characteristics | Total Mechanical Travel | 3600°±10° |
| Starting Torque | ≤36mN·m | |
| Clutch Torque | ≤300mN·m |
Packaging specification: 20 pieces/box, 50 pieces/box.
• Industrial Control: Used for adjusting and controlling parameters in various
industrial equipment, such as motor speed and temperature
controllers.
• Audio Equipment: Employed in high-end audio devices for precise adjustment of
volume, tone, and other audio parameters.
• Laboratory Equipment: Utilized in scientific experiments and measurement devices to
provide accurate resistance adjustment.
• Medical Devices: Used in certain medical instruments for precise control and
parameter adjustment.
• Aerospace: Applied in precision control systems within aerospace equipment.
• Communication Devices: Used in some communication equipment to adjust signal strength and
other parameters.
