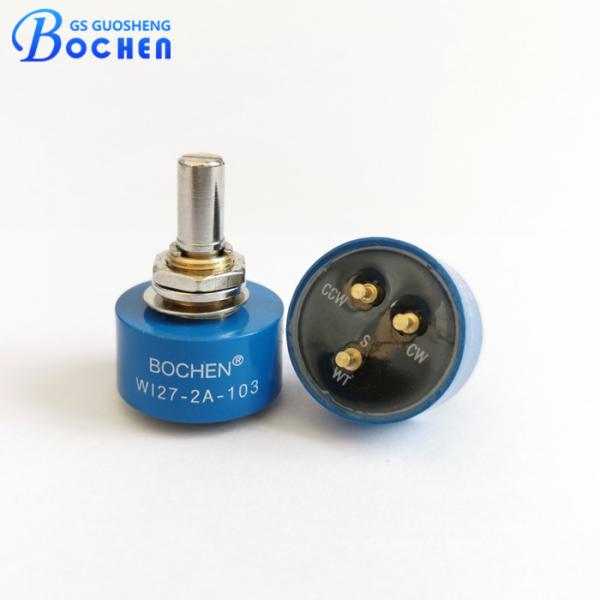

BOCHEN WI27 10K Precision Pot Single Turn Conductive Plastic Potentiometer
Quick Detail
• Lead-free.
• RoHS 2 compliant.
• 7/8” diameter.
• Single turn.
• Conductive plastic.
• Gold aluminum alloy housing.
Description
The WI27 Conductive Plastic Potentiometer is a high-quality, single-turn potentiometer designed for precise control in various applications. Featuring a compact 7/8" (22.2 mm) bushing mount type, this potentiometer is both versatile and easy to install. It offers a nominal resistance 5kΩ, with a power rating of 1 watt at 70°C. The resistance tolerance is ±20%, with the option to customize to ±10% for specific needs.
The WI27 potentiometer is engineered for accuracy, boasting an independent linearity of ±2.0%, which can be customized to ±1.0% for even greater precision. Its electrical travel is 340° ± 3°, ensuring smooth and reliable operation within its specified range. This conductive plastic potentiometer is ideal for applications requiring dependable and precise adjustments.
Specification
| Electrical Characteristics | Standard Resistance Range | 5 kΩ |
| Resistance Tolerance | ±20% (±10% can be customised) | |
| Linearity (independent) | ±2.0%(±1.0% can be customised) | |
| Output Smoothness | 0.1% maximum | |
| TCR | ±600 ppm/°C maximum | |
| Power Rating | 1.0 W at 70 °C derated to 0 W at 125 °C | |
| Electrical Travel | 340° ± 3° | |
| End Voltage | 0.5% maximum | |
| Dielectric Withstanding Voltage | 1000 VRMS, 60 Hz | |
| Insulation Resistance | 1000 MΩ, 500 VDC | |
| Mechanical Characteristics | Rotation | 360° continuous (optional mechanical stops 340° ± 3°) |
| Mounting | 3/8 - 32 UNEF - 2A | |
| Operating Torque Maximum | Starting and running 3.68 mNm (0.5 oz. - in) | |
| Shaft Tolerance Maximum Runout End play Radial play | 0.13 mm (0.005") 0.25 mm (0.010") 0.13 mm (0.005") | |
| Weight | 17.5 g (0.62 oz.) | |
| Environmental Characteristics | Vibration | 15 g, 10 Hz to 2000 Hz |
| Shock | 50 g | |
| Load Life | 1000 h | |
| Storage Temperature Range | -55 °C to +125 °C | |
| Life | 5 000 000 shaft revolutions | |
| Materials Housing Bushing Rear lid Shaft Terminals | Thermoplastic housing Brass, nickel plated Alumina Stainless stee Turret type, solder plated | |
| Bushing Mount Hardware Lockwasher Internal Tooth Panel Nut | Steel, nickel plated Brass nickel plated |
Dimension
Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.
Packaging
Application
• Pedal position.
• Joystick controls.
• Valve control.
• Wind vane.
• Panel control.
• Test and measurement.
• Medical equipment.
• Angular position.
Advantage
• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality
assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
