3323S 0.5W 1K 5K 10K 100K 500K Ohms Variable Resistor Side Adjustment Cermet Trimmer Potentiometer
• Side adjustment.
• Rated power 0.5W.
• Wide resistance range 10Ω to 5MΩ.
• Electrical travel 220°,total mechanical travel 250°.
• Cermet resistive element,more durable and stable.
• Single turn precision ceramic trimming potentiometer.
The 3323S trimmer potentiometer, a single turn cermet trimmer passive component tailored for precision resistance adjustments in electronic circuits.Featuring a user-friendly design, it offers side adjustment, allowing for convenient fine-tuning and installation in various applications. With a robust rated power of 0.5W, it efficiently manages moderate power loads, ensuring consistent performance across different circuit configurations.
The 3323S boasts a wide resistance range spanning from 10Ω to 5MΩ, accommodating diverse resistance requirements with ease. Its electrical travel extends to 220°, while the total mechanical travel covers 250°, enabling precise adjustments over a significant range of resistance values.Engineered with a cermet resistive element, this potentiometer stands out for its durability and stability, providing reliable operation even in demanding environments. As a single-turn precision ceramic trimming potentiometer, it delivers accurate and consistent resistance adjustments, offering precise control and calibration for electronic systems.
In summary, the 3323S trimmer potentiometer combines user-friendly design, robust power handling, wide resistance range, precise adjustments, and durability, making it an ideal choice for various electronic applications.
| Electrical Characteristics | Resistance Range | 10Ω-5MΩ |
| Resistance Tolerance | ±10%; ±20% | |
| Terminal Resistance | ≤±1%R or 3Ω | |
| Contact Resistance Variation (CRV) | ≤3%R or 3Ω | |
| Insulation Resistance | 500 Vdc. 100 megohms Min. | |
| Withstand Voltage | 101.3KPa, 500 Vac; 8.5KPa, 250 Vac | |
| Dielectric Strength | 500 Vac(1 Min.) | |
| Electrical Travel | 220° | |
| Environment Characteristics | Weld Heat Resistance | 250℃, 10 Secs. |
| Rated Power(300 volts max.) | 70℃, 0.5W; 125℃, 0W | |
| Temperature Range | -55°C ~ + 125°C | |
| Temperature Coefficient | ±250, ±100 ppm /°C | |
| Temperature Variation | ΔR≤±3%R, Δ(Uab/Uac)≤±1% | |
| Collision | 20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1% | |
| Vibration | 100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2% | |
| Electrical Endurance At 70°C | 1000 hours @ 70℃ Rated Power; ΔR≤±3%R | |
| Rotational Life | 200 Cycles, ΔR≤±3%R | |
| Physical Characteristics | Total Mechanical Travel | 250° |
| Starting Torque | ≤25 mN.m | |
| Clutch Torque | ≤35 mN.m |

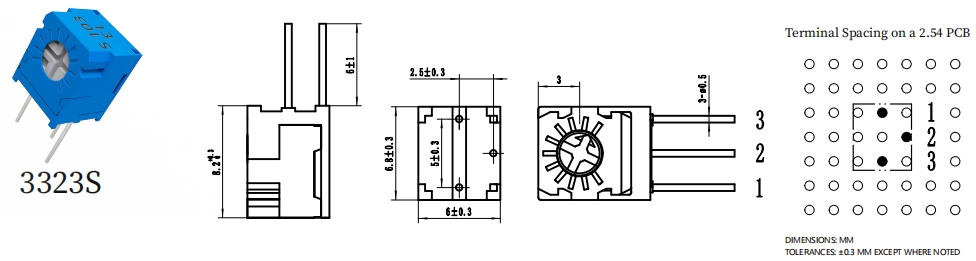

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.
Packaging
Packaging specification: 50 pieces/tube, 5000 pieces/carton.
