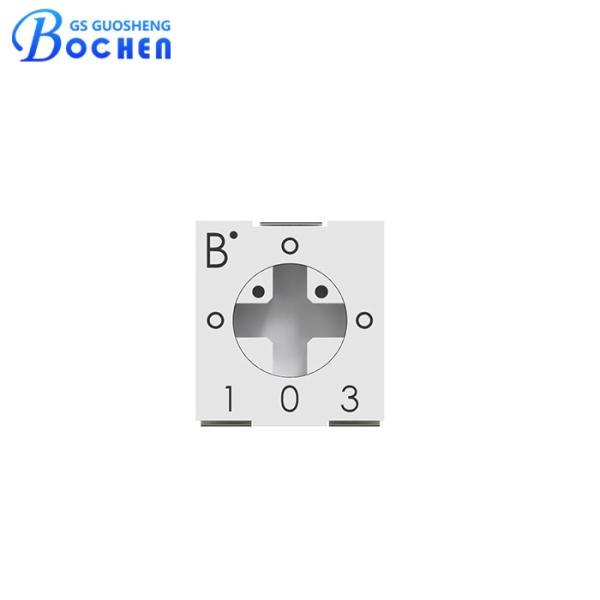

3313J 0.125W 100K Ohms 3mm Single Turn Square Cermet Trimmer Potentiometer
■ Adjustable resistance for precise control.
■ Compact design for space-saving applications.
■ Durable construction for reliable performance.
■ Easy installation with standard pin spacing.
■ Wide range of selectable resistance values.
■ Versatile applications in audio, consumer electronics, and
industrial controls.
Description
The 3313J 3mm square cermet trimmer potentiometer is an electronic component widely used for adjustable resistance in various applications. It features a compact and durable design, allowing for precise control over resistance levels. With its versatile range of selectable resistance values, it finds applications in audio equipment, consumer electronics, and industrial controls. The 3313J cermet trimmer potentiometer provides smooth and reliable operation, making it a popular choice for accurate resistance adjustments in electronic circuits.
| Electrical Characteristics | Nominal Resistance Range | 50Ω~2MΩ |
| Resistance Tolerance | ±10%; ±20% | |
| Terminal Resistance | ≤±1% R or 3Ω | |
| Contact Resistance Variation (CRV) | ≤3%R or 3Ω | |
| Insulation Resistance | 500 Vdc. 100 MΩ Min. | |
| Withstand Voltage | 101.3KPa, 500 Vac; 8.5KPa, 250 Vac | |
| Dielectric Strength Sea Level | 500 Vac(1 Min.) | |
| Electrical Travel | 220° | |
| Environment Characteristics | Weld Heat Resistance | 250℃ ,10 Secs. |
| Rated Power(300 volts max.) | 70℃, 0.125W; 125℃, 0W | |
| Temperature Range | -55°C ~ + 125°C | |
| Temperature Coefficient | ±250, ±100 ppm /°C | |
| Temperature Variation | ΔR≤±3%R, Δ(Uab/Uac)≤±1% | |
| Collision | 20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1% | |
| Vibration | 100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2% | |
| Electrical Endurance At 70°C | 1000 hours @ 70℃ Rated Power; ΔR≤±3%R | |
| Rotational Life | 100 Cycles, ΔR≤±3%R | |
| Physical Characteristics | Total Mechanical Travel | 250° |
| Starting Torque | ≤25 mN.m | |
| Clutch Torque | ≤35 mN.m |
Two terminal styles

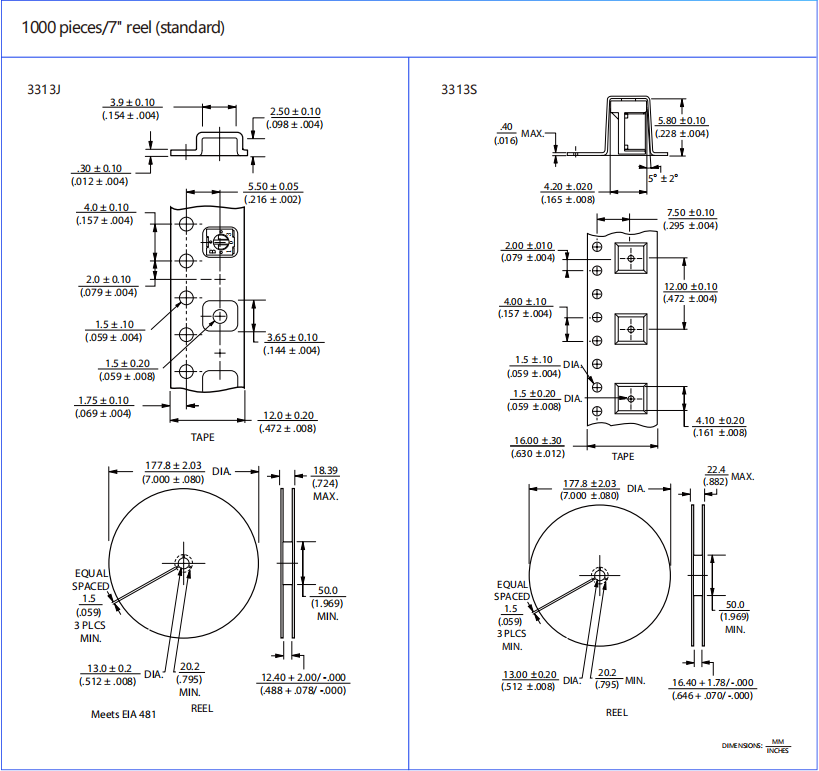

Packaging specification: 1000 pieces per tray (7 inches).
• Audio equipment.
• Consumer electronics.
• Industrial controls.
• Power supplies.
• Measurement and testing instruments.
• Robotics and automation.
• Automotive electronics.
• Telecommunications.
