3323P 103 10K RoHS Single Turn Variable Resistor Trimmer Potentiometer
The 3323P trimmer potentiometer is an adjustable electronic component used for controlling resistance in various applications. With its compact and versatile design, it allows for precise resistance adjustments. The potentiometer provides smooth and reliable operation, making it suitable for applications in audio equipment, consumer electronics, and industrial controls.
■ Adjustable resistance.
■ Compact design.
■ Smooth operation.
■ Durable construction.
■ Versatile applications.
| Electrical Characteristics | Nominal Resistance Range | 10Ω~5MΩ |
| Resistance Tolerance | ±10%; ±20% | |
| Terminal Resistance | ≤±1%R or 3Ω | |
| Contact Resistance Variation (CRV) | ≤3%R or 3Ω | |
| Insulation Resistance | 500 Vdc. 100 megohms Min. | |
| Withstand Voltage | 101.3KPa, 500 Vac; 8.5KPa, 250 Vac | |
| Dielectric Strength | 500 Vac(1 Min.) | |
| Electrical Travel | 220° | |
| Environment Characteristics | Weld Heat Resistance | 250℃, 10 Secs. |
| Rated Power(300 volts max.) | 70℃, 0.5W; 125℃, 0W | |
| Temperature Range | -55°C ~ + 125°C | |
| Temperature Coefficient | ±250, ±100 ppm /°C | |
| Temperature Variation | ΔR≤±3%R, Δ(Uab/Uac)≤±1% | |
| Collision | 20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1% | |
| Vibration | 100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2% | |
| Electrical Endurance At 70°C | 1000 hours @ 70℃ Rated Power; ΔR≤±3%R | |
| Rotational Life | 200 Cycles, ΔR≤±3%R | |
| Physical Characteristics | Total Mechanical Travel | 250° |
| Starting Torque | ≤25 mN.m | |
| Clutch Torque | ≤35 mN.m |

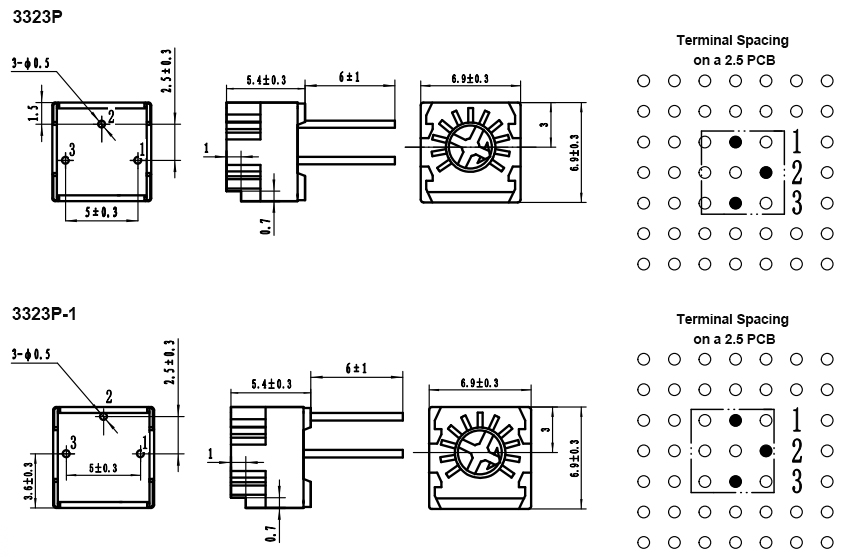

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.
Packaging Specification: 50 pieces/tube, 5000 pieces/carton.
■ Audio equipment.
■ Consumer electronics.
■ Industrial controls.
■ Robotics and automation.
■ Power supplies.
■ Measurement and testing instruments.
■ Automotive electronics.
■ Telecommunications.
