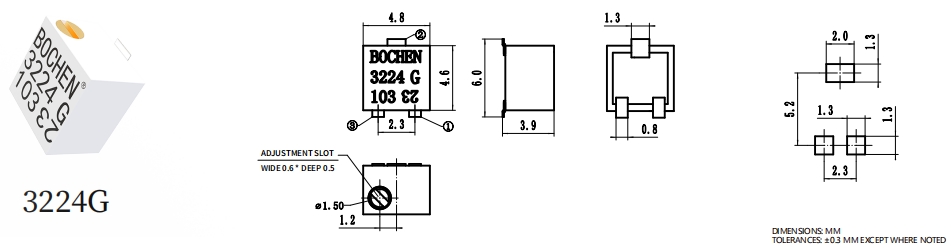

3324G 0.25W 10k Ohm 5Ω To 2MΩ SMD Trimpot Trimmer Potentiometer
• Surface Mount 4 mm Square / Multiturn/Cermet / Industrial /
Sealed
• Sealed to withstand board wash processing
• Pick and place centering design, with flush adjustment
• 4mm design, SMD standard trimmer footprint
• Low CRV ≤3%R or 3Ω.
The 3224G SMD Cermet Trimmer Potentiometer is a high-precision, surface-mount component designed for industrial applications. Measuring just 4 mm square, this multiturn cermet trimmer is sealed to withstand board wash processing, ensuring durability and reliability in harsh environments. Its pick-and-place centering design and flush adjustment feature facilitate easy integration into automated assembly processes.
With a standard SMD footprint, the 3224G offers a nominal resistance range from 50Ω to 2MΩ with a tolerance of 10%. It boasts a low contact resistance variation (CRV) of ≤3%R or 3Ω, making it ideal for precise adjustments. The trimmer provides effective travel of 9±2 turns and total mechanical travel of 10±2 turns, ensuring accurate tuning over its lifespan.
The 3224G is built to resist weld heat up to 250°C for 10 seconds and operates reliably within a temperature range of -55°C to +125°C. Its temperature coefficient is rated at ±250, ±100 ppm/°C, making it suitable for applications requiring high stability and precision. This robust trimmer potentiometer is perfect for use in a wide range of electronic devices where space, reliability, and precision are critical.
| Electrical Characteristics | Nominal Resistance Range | 50Ω-2MΩ |
| Resistance Tolerance | ±10% | |
| Terminal Resistance | ≤±1% R or 3Ω | |
| Contact Resistance Variation (CRV) | ≤3%R or 3Ω | |
| Insulation Resistance | 500 Vdc. R1≥1GΩ | |
| Withstand Voltage | 101.3KPa, 500 Vac；8.5KPa, 250 Vac | |
| Dielectric Strength Sea Level | 500 Vac(1 Min.) | |
| Effective Travel | 9±2 Turns | |
| Environment Characteristics | Weld Heat Resistance | 250℃ , 10 Sec. |
| Rated Power | 70℃, 0.25W；125℃, 0W | |
| Temperature Range | -55°C ~ + 125°C | |
| Temperature Coefficient | ±250 ppm /°C, ±100 ppm /°C | |
| Temperature Variation | ΔR≤±2%R, Δ(Uab/Uac)≤±1% | |
| Collision | 10-500Hz, 0.75mm, 6h ΔR≤±1%R, Δ(Uab/Uac)≤±2% | |
| Vibration | 100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2% | |
| Electrical Endurance At 70°C | 1000 hours @ 70℃ Rated Power; ΔR≤±3%R | |
| Mechanical Endurance | 200 cycles, ΔR≤±3%R | |
| Physical Characteristics | Total Mechanical Travel | 10±2 Turns |
| Starting Torque | ≤25 mN.m | |
| Clutch Torque | ≤35 mN.m |
Packaging specification: 500 pieces/tray(7"), 1500 pieces/tray(13").
The 3224 SMD cermet trimmer potentiometer finds application in a variety of specific electronic devices and equipment due to its compact size, precise adjustment capabilities, and reliable performance:
• Consumer Electronics: Used in devices like smartphones, tablets, and laptops for fine-tuning audio circuits, display brightness control, and other adjustable parameters that require precise resistance adjustments.
• Telecommunications Equipment: Incorporated into modems, routers, and communication devices for signal calibration and adjustment, ensuring stable and optimal communication performance.
• Medical Devices: Found in equipment such as patient monitoring systems, diagnostic devices, and medical instruments where accurate resistance settings are crucial for reliable operation and data accuracy.
• Automotive Electronics: Utilized in electronic control units (ECUs), sensors, and dashboard controls for calibration and adjustment of voltage, current, and signal levels in vehicle electronics systems.
• Industrial Controls: Integrated into PLCs, industrial automation equipment, and measurement instruments for precise parameter adjustments, contributing to operational efficiency and accuracy in industrial settings.
The 3224 SMD cermet trimmer potentiometer's ability to provide high precision and reliable resistance adjustment makes it an essential component in diverse electronic applications where compact size, durability, and stable performance are critical requirements.
• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity , short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
|
|
