WI11 1w 10 Ohms To 5 Megohms Tolerance 10% Single Turn Round Cermet Trimmer Potentiometer

Quick Detail:

• Three terminal style.

• 1/2" round cermet element.

• With a extended adjustment shaft.

• Throungh hole mounting method.

• Wide resistance range 10 ohms to 5 megohms, tolerance 10%.

• Electrical travel 220°, total mechanical travel 250°.

• Power rating 0.5w at 70℃.

Description:

The WI11 cermet trimmer potentiometer features a 1/2" round cermet element and is equipped with an extended adjustment shaft, making it ideal for precise tuning and calibration in various electronic applications. Designed for through-hole mounting, this trimmer potentiometer includes a three-terminal style for versatile connectivity. It offers a nominal resistance range from 10 ohms to 5 megohms with a tolerance of 10%, ensuring accurate adjustments. The WI11 provides an electrical travel of 220° and a total mechanical travel of 250°, allowing for fine control over resistance settings. With a power rating of 0.5 watts at 70°C, this cermet trimmer potentiometer is suitable for use in demanding environments while maintaining reliable performance.

Specification:

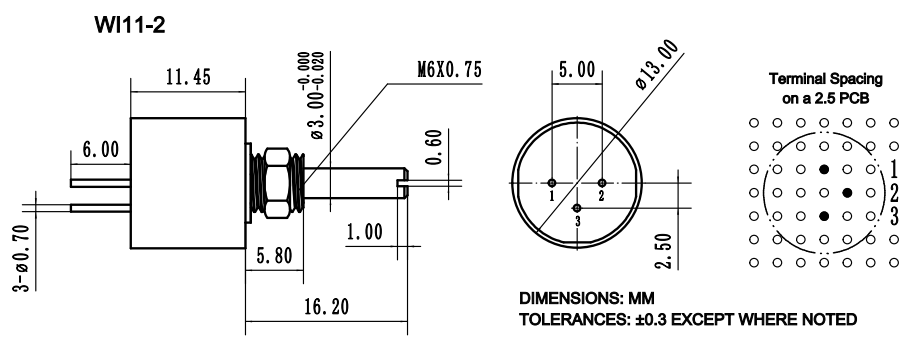

Dimension:

Three terminal style:

Packaging:

Packaging specification:Standard Packing 50 Pieces/Tube.

Application:

The WI11 cermet trimmer potentiometer is used in various applications due to its precision and reliability. Here are some key application areas:

• Telecommunications: Used in tuning and calibration of communication devices.
• Medical Equipment: Essential for precise control in diagnostic and monitoring devices.
• Industrial Automation: Employed in control systems for machinery and processes.
• Consumer Electronics: Utilized in adjusting settings in devices like audio equipment and home appliances.
• Automotive: Used in electronic control units and various sensor applications.
• Aerospace: Critical for calibration and adjustment in avionics and other aerospace systems.
• Instrumentation: Applied in measurement and testing instruments for accurate control and calibration.

These diverse applications highlight the versatility and importance of cermet trimmer potentiometers in modern technology.

Advantage:

• Factory direct supply, no middlemen.
• Completed certificates such as UL,RoHS,SGS,etc and best quality assurance.
• Sufficient production capacity , short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
