    10k 100k Ohm Precision Trimmer Potentiometer 3386P 0.5W ODM

    Ask Lasest Price
    Brand Name : BOCHEN
    Model Number : 3386P Series
    Certification : RoHS, Reach
    Price : $0.06 - $0.90/Piece
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 10000000 Pieces Per Month
    Delivery Time : 1-7 Workdays
    • Product Details
    • Company Profile

    10k 100k Ohm Precision Trimmer Potentiometer 3386P 0.5W ODM

    3386P Series 0.5W 10k ohms Precision Single Turn Cermet Trimmer Potentiometer


    Quick Detail:


    • 3/8˝ square / single turn / cermet element / fully sealed.

    • Six terminal style.

    • Available with extended shaft.

    • Available with a knob for finger adjust.

    • Top and side adjustment.

    • Through hole mounting.

    • Wide ohms range from 10Ω to 5MΩ, tolerance 10%.

    • Electrical travel 220°, total mechanical travel 250°.


    Description:


    The 3386P trimmer potentiometer is an electronic component known for its adjustable resistance capabilities. Here is a brief introduction to its key features:


    • Adjustable resistance: The 3386P trimmer potentiometer allows users to precisely adjust resistance levels according to specific circuit requirements, providing control over voltage, current, and signal strength.

    • High precision and reliability: This potentiometer offers excellent precision and reliability in resistance adjustment, ensuring consistent and accurate performance.

    • Durable construction: The 3386P trimmer potentiometer is built with high-quality materials and features a robust design, making it resistant to wear, temperature variations, and environmental factors.

    • Easy installation and compatibility: It features standard pin spacing and is designed for easy installation and compatibility with various electronic systems and devices.

    • Versatile applications: The 3386P trimmer potentiometer is commonly used in audio equipment, consumer electronics, industrial controls, and other applications that require precise resistance control.


    In summary, the 3386P trimmer potentiometer is a high-precision, reliable, and versatile component that allows for accurate resistance adjustments in electronic circuits. Its durability, compatibility, and wide range of applications make it a preferred choice for engineers and hobbyists in various industries.


    Specification:


    Electrical CharacteristicsNominal Resistance Range10Ω~5MΩ
    Resistance Tolerance±10%; ±20%
    Terminal Resistance≤±1% R or 3Ω
    Contact Resistance Variation (CRV)≤3%R or 3Ω
    Insulation Resistance500 Vdc. 100 megohms min.
    Withstand Voltage101.3KPa, 500 Vac; 8.5KPa, 250 Vac
    Dielectric Strength Sea Level500 Vac(1min.)
    Effective Travel220°
    Environment CharacteristicsWeld Heat Resistance250ºC, 10 Sec.
    Rated Power70ºC, 0.5W; 125ºC, 0W
    Temperature Range-55°C ~ + 125°C
    Temperature Coefficient±250, ±100 ppm /°C
    Temperature VariationΔR≤±3%R, Δ(Uab/Uac)≤±1%
    Collision20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1%
    Vibration100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
    Electrical Endurance At 70°C1000 hours @ 70ºC Rated Power; ΔR≤±3%R
    Mechanical Endurance200 cycles, ΔR≤±3%R
    Physical CharacteristicsTotal Mechanical Travel250°
    Starting Torque≤25 mN.m
    Clutch Torque≤35 mN.m

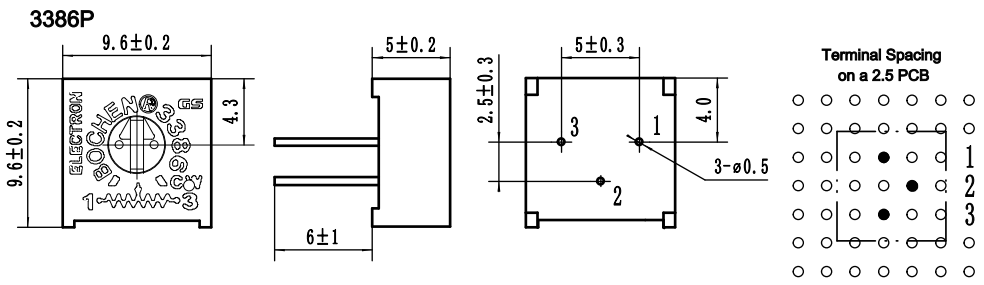

    Dimension:


    Six terminal style:

    Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.


    Packaging:


    Packaging specification: 50 pieces per tube.


    Application:


    • Calibration of Electronic Devices.

    • Industrial Control.

    • Medical Devices.

    • Communication Equipment.

    • Consumer Electronics.

    • Aerospace.

    • Automotive Electronics.


    Advantage:


    • Factory direct supply, no middlemen.
    • Completed certificates such as RoHS, Reach, etc and best quality assurance.
    • Sufficient production capacity, short delivery time.
    • Professional after-sales service team.
    • OEM&ODM available.
