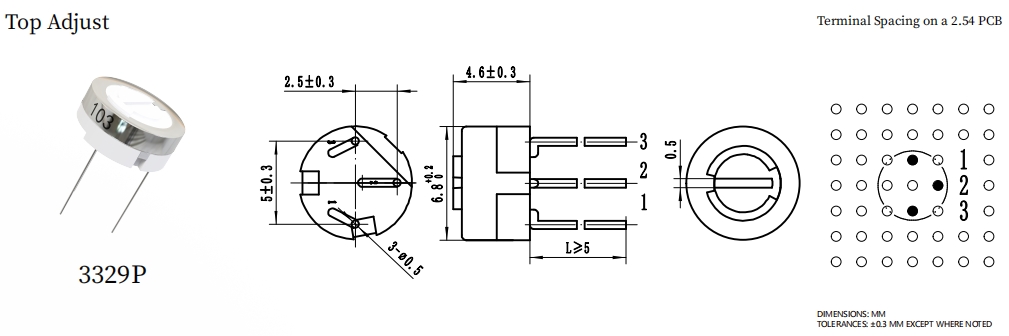

3329P 0.5W 5K 10K 20K 50K 100K 1/4" Round Single Turn Cermet Trimmer Trimming Potentiometer
● 0.5W at 70℃.
● Top adjustment.
● RoHS compliant version available.
● Electrical travel 220°, total mechanical travel 250°.
● Contact Resistance Variation (CRV) ≤3%R or 3Ω.
● 1/4˝ Round / Single Turn / Cermet Industrial / Sealed.
● Wide resistance range from 10Ω to 5MΩ,resistance tolerance ±10%.
The 3329P is a single turn cermet trimmer potentiometer with a 1/4˝ round, single-turn, cermet industrial design, making it suitable for various applications. It features top adjustment for easy tuning and can handle 0.5W at 70℃. With a wide resistance range from 10Ω to 5MΩ and a resistance tolerance of ±10%, it offers flexibility in circuit design. Its Contact Resistance Variation (CRV) is ≤3%R or 3Ω, ensuring stable performance. Additionally, it is available in a RoHS compliant version. The electrical travel is 220°, while the total mechanical travel is 250°, providing precise control over resistance settings.
| Electrical Characteristics | Resistance Range | 10Ω~5MΩ |
| Resistance Tolerance | ±10%；±20% | |
| Terminal Resistance | ≤±1% R or 3Ω | |
| Contact Resistance Variation (CRV) | ≤3%R or 3Ω | |
| Insulation Resistance | 500 Vdc. 100 megohms min. | |
| Withstand Voltage | 101.3KPa, 500 Vac；8.5KPa, 250 Vac | |
| Dielectric Strength | 500 Vac(1Min.) | |
| Electrical Travel | 220° | |
| Environment Characteristics | Weld Heat Resistance | 250℃, 10 Secs. |
| Rated Power(300 volts max.) | 70℃, 0.5W; 125℃, 0W | |
| Temperature Range | -55°C ~ + 125°C | |
| Temperature Coefficient | ±250, ±100 ppm /°C | |
| Temperature Variation | ΔR≤±3%R, Δ(Uab/Uac)≤±1% | |
| Collision | 20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1% | |
| Vibration | 100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2% | |
| Electrical Endurance At 70°C | 1000 hours @ 70℃ Rated Power; ΔR≤±3%R | |
| Rotational Life | 200 Cycles, ΔR≤±3%R | |
| Physical Characteristics | Total Mechanical Travel | 250° |
| Starting Torque | ≤25 mN.m | |
| Clutch Torque | ≤35 mN.m |
packaging specification: 50 pieces per tube.
