RV24 0.25W 500K Ohm Metal Shaft Carbon Film Potentiometer For Guitar Parts

Feature

• 24mm diameter, single-turn industrial panel controls.
• Carbon film element.

• Linear or audio tapers.
• Single, tandem and triple units, single shaft; dual unit, dual shaft.
• SPST or SPDT switch with 1A or 3A rating.
• Shaft lock and center tap models.

• Metal shaft and bushing.

• Panel mount only.

• Right angle ear-lug terminals.
• 6mm diameter shafts in slot, flat or round end styles.
• Standard 15mm or 20mm shaft length.

Description

The RV24 carbon film potentiometer is a versatile and reliable component widely used in electronic circuits for adjusting resistance and controlling signal levels. This potentiometer features a carbon film resistive element, which ensures smooth and precise adjustments over its entire range. With a standard adjustment travel of 280°,mechanical travel 300°,the RV24 offers excellent linearity and stability, making it ideal for applications such as volume control, tuning, and signal conditioning.

Designed for durability, the RV24 potentiometer boasts a robust construction with a metal shaft and bushing, ensuring long-lasting performance even in demanding environments. It is available in various resistance values, typically ranging from 50Ω to 2MΩ, resistance tolerance 10%, allowing for flexibility in design and application.

The RV24 carbon film potentiometer is easy to integrate into circuits, thanks to its standard three-terminal configuration. It also features a compact design, making it suitable for use in space-constrained applications. Whether used in consumer electronics, industrial equipment, or automotive systems, the RV24 potentiometer delivers reliable and accurate performance, making it a preferred choice for engineers and designers.

Specification

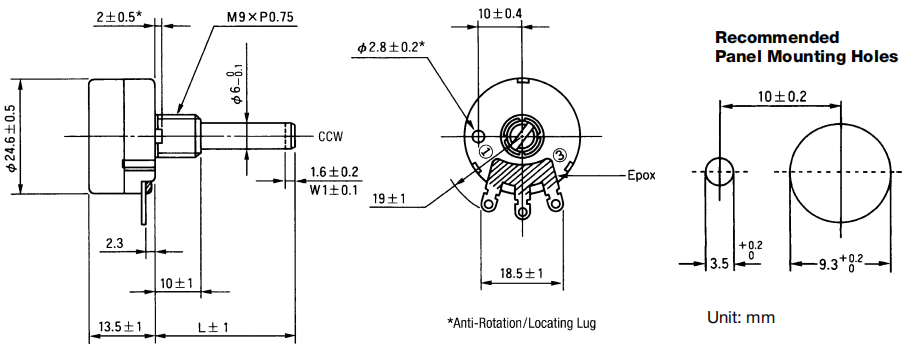

Dimension

Packaging

Packaging specification: 1. 20 pieces/box; 200 pieces/box; 800 pieces/carton/4 boxes 2. 800 pieces/25KG/67*35*30cm

Application

The RV24 carbon film potentiometer is a versatile component with a wide range of applications across various industries. Some of the key application fields include:

1. Consumer Electronics:
• Volume and tone control in audio equipment such as amplifiers, radios, and home theater systems.
• Brightness and contrast adjustment in televisions and monitors.
• User interface controls in household appliances like ovens, washing machines, and air conditioners.

2. Industrial Equipment:
• Precision control in instrumentation and measurement devices.
• Adjustment of parameters in process control systems.
• Speed and torque control in motor drives and industrial automation systems.

3. Automotive Systems:
• Dashboard controls for lighting, climate control, and audio systems.
• Position sensing in throttle and brake systems.
• Adjustment of suspension and steering systems in advanced automotive applications.

4. Medical Devices:
• Control of parameters in diagnostic equipment such as ECG machines and blood pressure monitors.
• Adjustment of settings in therapeutic devices like infusion pumps and ventilators.
• User interface controls in medical imaging systems.

5. Telecommunications:
• Signal level adjustment in radio and communication equipment.
• Parameter tuning in network infrastructure devices like routers and switches.
• Control of settings in satellite and broadcasting equipment.

6. Aerospace and Defense:
• Precision adjustment in avionics and navigation systems.
• Control of parameters in communication and radar systems.
• User interface controls in military and defense equipment.

The RV24 carbon film potentiometer's reliability, precision, and durability make it an essential component in these diverse application fields, providing accurate and stable performance in various operating conditions.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.

BOCHEN Potentiometer｜Manufacturer of Potentiometers and Electronic Components For 25 Years.

Sichuan Bochen Guosheng Intelligent Technology Co., Ltd. is a national high-tech enterprise focusing on the research and development, design, production, sales and service of potentiometer resistors, and a key project contractor of China National 863 Torch Plan. The company is located in Chengdu Modern Industrial Port, with an existing R&D and production base of more than 20,000 square metres. Since the establishment of the company, with more than 20 years of R&D and production technology precipitation, formed a set of perfect quality management system, by virtue of the reliable quality of the products and excellent service, established a good reputation in the industry.

The company's products are widely used in rail transportation, electric power equipment, aerospace, industrial automation and instrumentation, new energy vehicles and charging piles, lift industry and other fields, the company produces the "BOCHEN" series of products, not only to meet the domestic demand, and at the same time exported to the United States, Germany, the United Kingdom, Mexico, Portugal, Brazil, Russia, Colombia, South Korea and the United States. The company not only meets the domestic demand, but also exports to the United States, Germany, Britain, Mexico, Portugal, Brazil, Russia, Colombia, South Korea, Australia and other more than 50 countries, forming a marketing service system throughout the world.

China's leading enterprise of potentiometer.

Our strength：

• A large number of product series in our factory have passed the certification of various international standards.

• Leading market share.Market share ranking of the top 24 global potentiometer and rheostat manufacturers.
