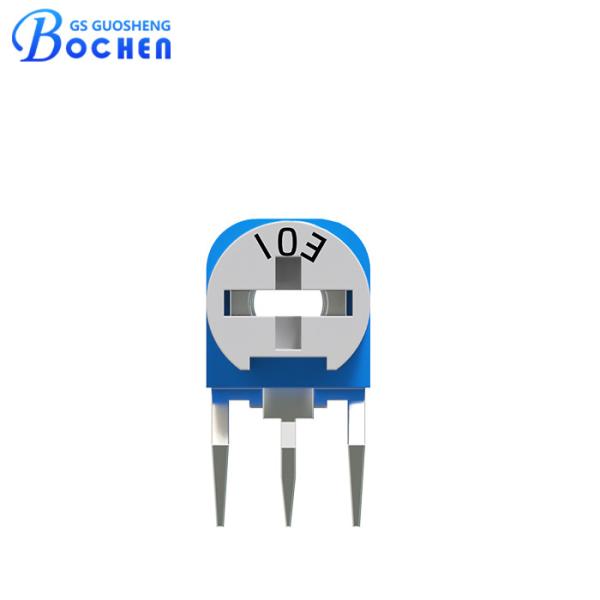

RM063 Single Turn Carbon Film Potentiometer Small Vertical Mount

Quick Detail

• Carbon resistive element.
• Plastic substrate.
• Over-molding manufacturing technique.
• Through hole mounting.
• Wiper positioned at 50%.
• Both sides cross slot easy adjustment.
• Accidental rotor movement protected.
• RoHS compliant materials.

Description

The RM063 carbon potentiometer is a versatile component featuring a 6mm single turn carbon film design. It incorporates a carbon resistive element and is adjusted from the side, making it convenient for various applications. Constructed with a plastic substrate and utilizing an over-molding manufacturing technique, this potentiometer ensures durability and reliability. It is designed for through-hole mounting and comes with the wiper positioned at 50% for optimal performance.

The RM063 offers a standard resistance range from 10 ohms to 1 megohm, with a tolerance of 30%. For contact resistance variation, it maintains a maximum of 30 ohms for resistances under 1K ohm and 3% for those above 1K ohm. Its rotational angle is 210°± 20°, providing precise control. With a power rating of 0.1W at 50℃, it operates efficiently within a temperature range of -10℃ to +70℃. Additionally, the design includes protection against accidental rotor movement, ensuring stability during use. The RM063 is compliant with RoHS standards, making it a safe and environmentally friendly choice for electronic projects.

Specification

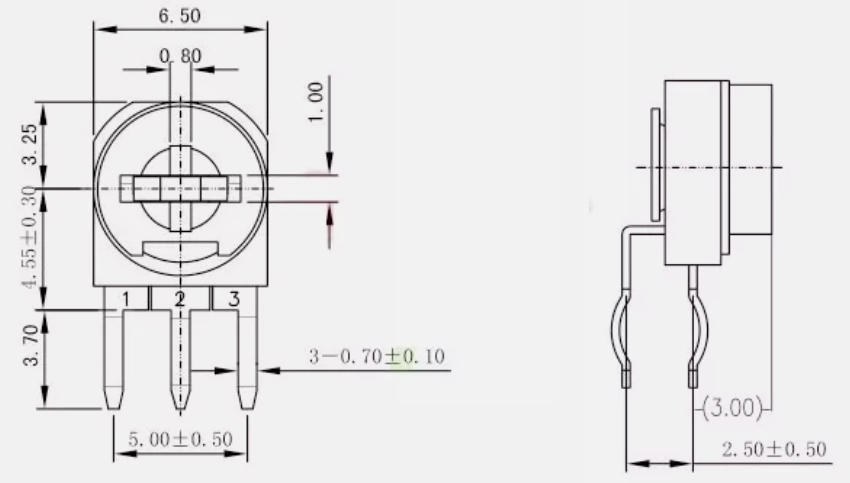

Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

Application

The RM063 carbon potentiometer is used in a variety of applications across different sectors. Here are some key application areas:

• Consumer Electronics: Utilized in devices like radios, televisions, and audio equipment for adjusting volume, tone, and other settings.

• Industrial Equipment: Employed in machinery and industrial control systems for setting parameters such as speed, temperature, and pressure.

• Automotive: Used in vehicles for controlling dashboard lights, seat positions, climate control systems, and other adjustable settings.

• Medical Devices: Applied in medical equipment for fine-tuning and calibration of various settings.

• Home Appliances: Found in appliances like washing machines, microwaves, and ovens for setting timers and other adjustable functions.

• Communication Devices: Used in communication equipment for tuning frequencies and signal adjustments.

• Instrumentation: Employed in measuring instruments for calibration and adjustment purposes.

• Educational and DIY Projects: Commonly used in educational kits and DIY electronics projects for learning and experimentation.

• Lighting Control: Utilized in dimmer switches and other lighting control applications to adjust brightness levels.

These potentiometers are valued for their reliability, precision, and cost-effectiveness in providing variable resistance in electronic circuits.
