    RX18 Aluminum Housed 1KW 2KW 5KW 10KW Braking Resistor For Vfd

    Ask Lasest Price
    Brand Name : BOCHEN
    Model Number : RX18
    Certification : RoHS, REACH
    Price : $2.80 - $30.00/piece
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 3,000,000 Pieces Per Month
    Delivery Time : 1-7 Workdays
    • Product Details
    • Company Profile

    RX18 Aluminum Housed 1KW 2KW 5KW 10KW Braking Resistor For Vfd

    RX18 Aluminum Housed 1KW 2KW 5KW 10KW Braking Resistor For Vfd


    Description

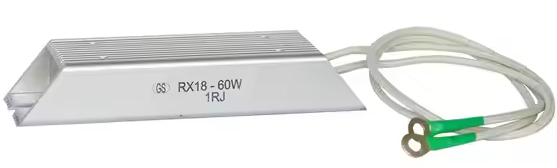

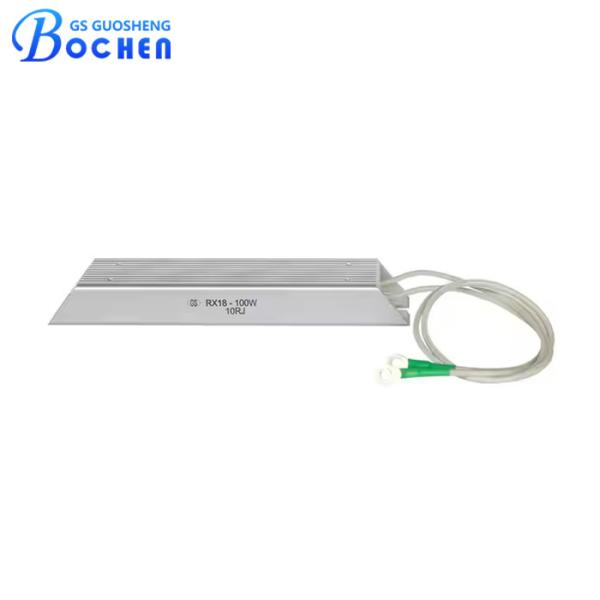

    The BOCHEN RX18 wirewound braking resistor is an economical and compact aluminium housedresistor with good electrical stability and reliability. With power ratings up to 10KW they are suited to a range of electrical circuits including power suppliesinverters and servo systems. With very good durability and mineral filledconstruction they are particularly good for braking and other pulseapplications.



    Feature


    • Efficient Heat Dissipatio


    Carefully designed heat sinks with large surface area facilitate the quick removal of heat by flowing air.



    • Thickened Terminals


    Thickened terminals for corrosion resistance, heat-resistant woven cables, ensuring flexibility and ease of installation.



    • Customization Available


    We offer customization options to meet specific design requirements, allowing for personalized solutions to address unique application needs.



    Specification


    Rated Power60W~10KW
    Nominal Resistance Range0.2Ω~2KΩ
    Resistance Tolerance5%
    Temperature Coefficient±200PPM/°C
    Short Term Overload60W: 5 * Rated Power for 5 seconds
    >60W: 10 * Rated Power for 5 seconds
    Limiting Element Voltage600VAC / 850VDC
    Dielectric Strength2500VAC 1 Minute
    Insulation Resistance100MΩ
    Temperature Range-25°C~250°C
    Max. Surface Temp at Rated Power250°C~350°C

    Dimension


    Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.


    Packaging


    Packaging specification: 1. 38*30*15CM/6 Pieces/Carton/16KG(1000W)

    2. 62*36.8*14CM/5 Pieces/Carton/22KG(3000W)


    Application


    The RX18 Aluminum Housed Power Wirewound Resistor finds application in various specific equipment and facilities, including:


    1. Power Supplies: Ensures stable current and voltage in power supply units, enhancing system reliability.
    2. Motor Control Systems: Limits current and protects circuit components in motor drive and control circuits.
    3. Braking Systems: Used in braking resistors for energy recovery and control of braking circuits.
    4. Generators: Stabilizes current and voltage outputs in generator circuits.
    5. Industrial Automation Equipment: Regulates resistance and power distribution in various industrial automation control systems.
    6. Electronic Devices: Manages and controls current in diverse high-power electronic devices and circuit boards.


    In summary, the RX18 Aluminum Housed Power Wirewound Resistor plays a crucial role in electronic and electrical equipment requiring high power, stability, and reliability. It is extensively utilized in industrial, electronic, communication, and automotive sectors.



    Advantage


    • Factory direct supply, no middlemen.
    • Completed certificates such as RoHS, Reach, etc and best quality assurance.
    • Sufficient production capacity, short delivery time.
    • Professional after-sales service team.
    • OEM & ODM available.
